Bar LCD Screen

Bar LCD Screen Manufacturer - Uniview Commercial Display

When you need to display dynamic content in tight, unconventional spaces, Bar LCD Screen technology provides the perfect solution. These specialized extended displays—featuring ultra-wide angle proportions like 16:3, 32:9, or 58:9—solve the basic challenge of spatial inconsistency in cutting edge commercial situations. Whether you're looking to change limit retail rack edges, open travel headers, or mechanical control boards, the product turns already unusable dead zones into effective computerized communication channels. With Uniview's progressed designing, you'll accomplish high-brightness visuals (up to 4000 nits) and solid 24/7 operation that drives client engagement and maximizes your ROI.

Since 2011, Uniview Commercial Display has pioneered digital signage innovation for over a decade. Our stretched displays combine cutting-edge heat dissipation technology, ultra-clear offline coated AR glass, and international compliance standards from Europe, America, and Japan—ensuring your investment delivers exceptional performance in any environment.



Product

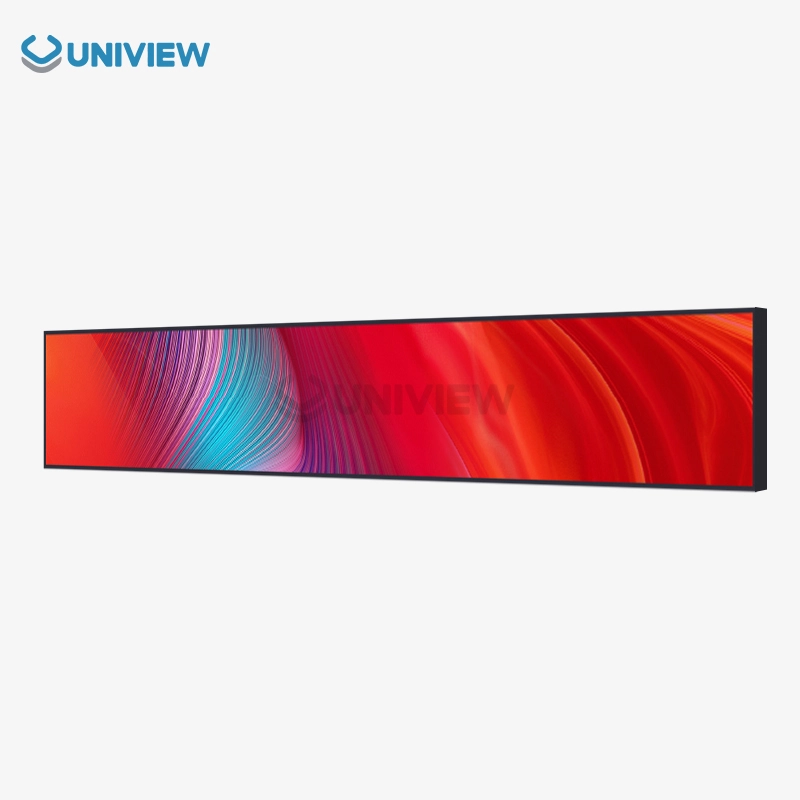

SS100_01

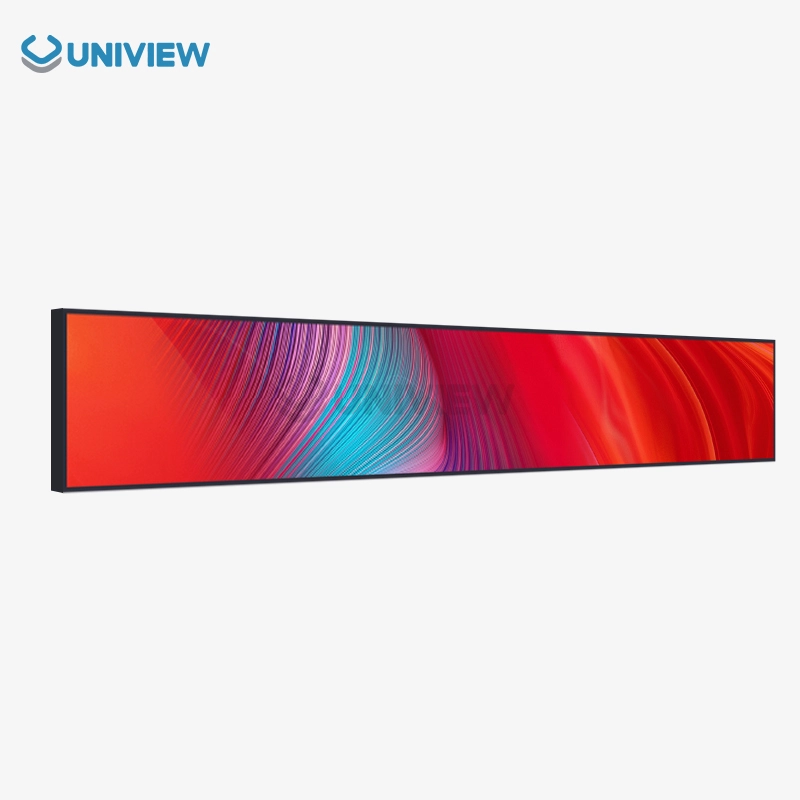

SS100_02

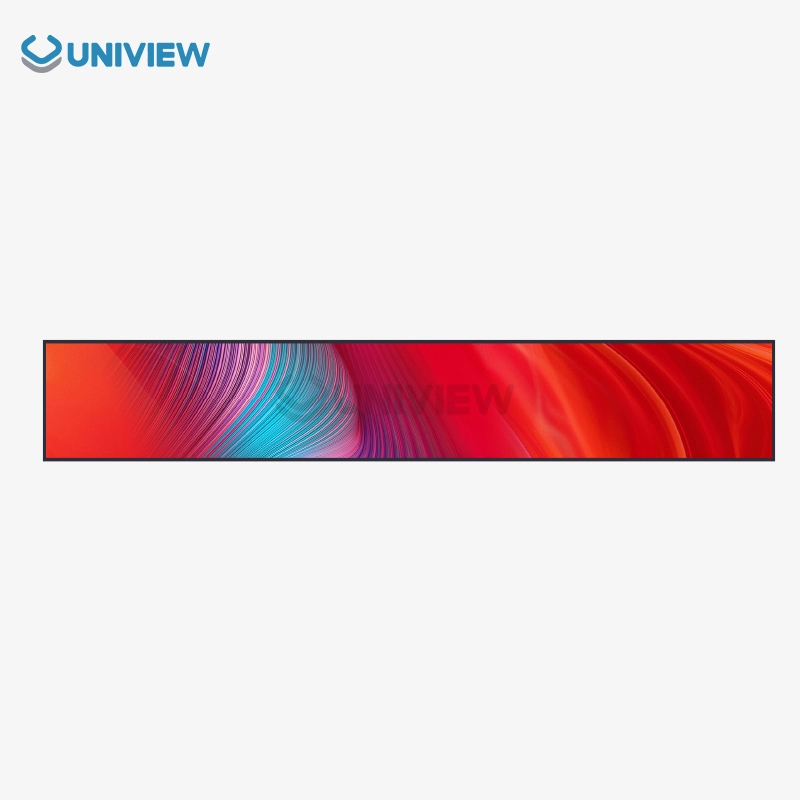

SS100_03

Key Features

Our stretched bar displays are engineered for commercial excellence:

Optical Performance

• Ultra-high brightness from 1000 to 4000 nits for visibility in any lighting condition
• Superior contrast ratio of 1200:1 for crisp, readable text
• Wide viewing angles (89°/89°/89°/89°) ensuring content visibility from all directions
• AR glass coating delivering crystal-clear image quality

Durability & Reliability

• 24/7 continuous operation capability with MTBF exceeding 50,000 hours
• IP65-IP66 water and dustproof protection for challenging environments
• Corrosion-resistant European surface treatment technology
• 16-level wind resistance for semi-outdoor installations
• Operating temperature range: 0°C to +50°C

Smart Integration

• Android operating system with RK3568 CPU
• Built-in content management software (CMS) support
• WiFi network connectivity for remote updates
• Multiple interface options: HDMI, DVI, LVDS, MIPI

Professional Design

• Whisper-quiet operation at only 60 dB
• Ultra-slim metal construction (53mm depth)
• Double-layer anti-theft security locks
• Optimized for both landscape and portrait mounting

Product Size Options

We understand that every installation space is unique. Our Bar LCD Screen product line offers flexible sizing:

• 19.1" to 28.8" – Perfect for shelf-edge retail displays and compact signage
• 37" to 48" – Ideal for transportation systems and reception areas
• 58" to 86" – Designed for large-format corridor displays and airport information systems

Each size maintains the stretched aspect ratio optimized for your specific application. Custom dimensions are available through our specialized cutting technology, ensuring a perfect fit for your project requirements.

Application Scenarios

Your stretched display investment delivers maximum impact across diverse environments:

Smart Retail Environments

Transform rack edges in general stores and extravagance boutiques with energetic estimating, special substance, and item data. These shows supplant inactive signage at the basic point of buy choice, driving motivation buying and upgrading client experience.

Intelligent Transportation

Deploy as overhead header shows in metro cars, buses, and prepare stations. Give travelers with real-time course maps, entry data, and crisis alarms whereas withstanding steady vibration and voltage fluctuations.

Corporate & Hospitality

Install over gathering work areas, in lift anterooms, and along passages to show wayfinding, corporate informing, and occasion data in a smooth, inconspicuous format.

Gaming & Entertainment

Utilize as eye-catching topper displays on gaming machines or as ambient displays in entertainment venues where space is premium but visual impact is essential.

Industrial Control Centers

Integrate into control panels and monitoring stations where narrow dashboard spaces require real-time data visualization across multiple parameters.

Product Structure

Our engineering ensures robust performance through thoughtful construction:

Display Panel Assembly

• Industrial-grade LCD cell with Hi-Tni liquid crystals preventing blackening under heat
• Precision-cut glass with microscopically inspected sealed edges
• High-uniformity LED backlight system (>85% uniformity across entire length)

Thermal Management

• Aluminum back chassis with optimized heat dissipation channels
• Active cooling functionality for high-brightness configurations
• Strategic ventilation design preventing LED driver overheating

Control Electronics

• Integrated media player board with Android OS
• Driver board supporting non-standard EDID resolution profiles
• Multiple connectivity ports for flexible content sources

Protective Housing

• Corrosion-resistant metal enclosure with European surface treatment
• Optional IP65-IP66 sealing for dusty or semi-outdoor environments
• Double-layer anti-theft lock mechanism

Customization Options

Every project has unique demands. We offer comprehensive customization:

Physical Customization

• Custom aspect ratios and resolutions (1920×360, 3840×600, and more)
• Curved form factors for specialized applications
• Touch-enabled versions with optical bonding technology
• Ultra-slim bezel designs maximizing display area

Performance Specifications

• Brightness levels from 700 to 4000 nits
• High ambient light sensors for automatic adjustment
• Enhanced temperature resistance for extreme environments
• Specialized anti-glare treatments

Integration Features

• Custom CMS software integration
• Specific interface requirements (MIPI, LVDS, HDMI, DP)
• Power over Ethernet (PoE) capability
• Integration with existing building management systems

Branding & Aesthetics

• Custom color housing options
• Logo placement and branding elements
• Specific mounting bracket designs
• Cable management solutions

Production & Quality Control

Quality is non-negotiable in commercial display manufacturing. Our rigorous process ensures reliability, including the Bar LCD Screen.

Manufacturing Excellence

We utilize exact Fluid Precious stone Cutting Innovation for custom sizes, utilizing laser cutting and mechanized UV curing forms that guarantee chemical steadiness comparable to local boards. Our progressed office complies with European, American, and Japanese universal standards.​​​​​​​

Multi-Stage Review Protocol

Sealing Astuteness: Infinitesimal review of cut edges anticipates fluid gem spillage and dampness ingress—critical for long-term reliability.

Backlight Consistency: Each unit experiences comprehensive consistency testing, keeping up >85% consistency over the whole length to dispense with hot spots or dim corners.

Environmental Stretch Screening: High-low temperature maturing tests (-20°C to +70°C) and vibration testing (IEC 61373 benchmarks) guarantee your show withstands transportation stretch and operational conditions.

Optical Holding Quality: For touch-enabled units, we assess for bubbles or delamination, ensuring life span in high-traffic open environments.

Reliability Validation

• MTBF testing exceeding 50,000 hours of continuous operation
• Simulated outdoor environment exposure to strong light
• Voltage fluctuation testing for transportation applications
• Drop and shock testing for installation safety

Why Choose Uniview?

Proven Global Experience

With over a decade of specialized digital signage expertise and presence in 100+ countries, we understand the complexities of commercial display deployment across diverse markets and regulatory environments.

Comprehensive Support Ecosystem

• Extended warranty coverage: 3 to 5 years
• 24-hour global online technical support
• Quality coverage backed by China Pacific Insurance Company
• Dedicated project consultation and post-installation service

Advanced Technology Foundation

Our displays incorporate reliable heat dissipation systems, high-quality offline coated AR glass, and European surface treatment technology—ensuring your investment performs reliably year after year.

True Customization Capability

Unlike distributors offering off-the-shelf solutions, we manufacture in-house, giving you genuine customization options tailored to your exact specifications and vision.

End-to-End Quality Assurance

From component selection through final inspection, every stage is controlled and documented. Our insurance-backed quality coverage provides additional peace of mind for your capital investment.

Packaging & Shipping

We protect your investment from factory to installation site:

Professional Packaging

• Individual foam cushioning for panel protection
• Reinforced cardboard exterior rated for international shipping
• Moisture-barrier wrapping for sea freight
• Clearly labeled handling instructions in multiple languages

Shipping Flexibility

• Air freight for urgent projects
• Sea freight for cost-effective large orders
• Consolidated shipping options for multi-unit deployments
• Door-to-door delivery coordination available

Documentation & Compliance

• Complete installation manuals and technical specifications
• Customs documentation for international shipments
• Compliance certificates (CE, FCC, RoHS as applicable)
• Inspection reports and warranty registration

FAQ

Q: Can extended shows coordinate the unwavering quality of standard perspective proportion screens?​​​​​​​

A: Completely. Our industrial-grade fixing and circuit overhaul forms, combined with laser cutting and computerized UV curing, provide MTBF appraisals of 50,000+ hours—equivalent to local panels.

Q: How do I oversee substance on bizarre viewpoint ratios?

A: Our coordinates media player bolsters EDID adjustment, recognizing non-standard resolutions like 1920×540 or 3840×600. This avoids picture stretching—your substance shows impeccably utilizing standard CMS software.

Q: Will these work in coordinate daylight or semi-outdoor locations?

A: Standard models are optimized for indoor utilize. For open air or semi-outdoor applications, indicate our high-brightness models (1500+ nits) with Hi-Tni fluid precious stones that avoid show darkening beneath sun based stack and tall temperatures.

Q: What around warm administration in restricted establishment spaces?

A: Our aluminum back chassis gives inactive cooling for standard brightness models. High-brightness arrangements (>1000 nits) incorporate dynamic cooling usefulness and optimized warm formats avoiding Driven driver overheating.

Q: What substance interfacing are available?

A: Littler shows ordinarily utilize MIPI or LVDS interfacing. Bigger signage models (28 inches and over) offer HDMI, DVI, or DisplayPort inputs coordinates with Android or Windows-based media player boards.

Q: How long does customization take?

A: Standard custom sizes regularly require 3-4 weeks. Complex customizations with specialized highlights may require 6-8 weeks. We'll give a exact timeline amid your venture consultation.

Q: Do you give establishment support?

A: Yes. We supply comprehensive establishment manuals, mounting equipment determinations, and inaccessible specialized back. For large-scale organizations, we can prescribe certified establishment accomplices in your locale.

Contact Us

Let's create something extraordinary together. Contact our display specialists today to discuss your project requirements and receive a customized solution proposal, including the Bar LCD Screen.
